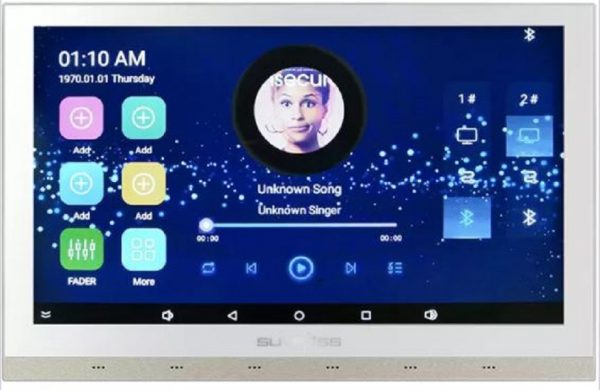

Surpass 10 Inch In-Wall Amplifier

SURPASS 10 INCH IN-WALL POWER AMPLIFIER

Model: PW1825

WIFI Blue-tooth Amplifier Audio Wall Amplifier Features:
1. The device is for AC90-250V, please install and debug under the guidance of professionals.
2. Please read this manual carefully and follow the installation instructions strictly.
3. Please check the binding posts carefully for speaker cables, power cables, and audio input cables.
4. Make sure that all connecting lines are accurate before turning on the device.
5. Please do not modify, dismantle, repair or upgrade the device by yourself. 1GB/2GB.
6. When not using the main unit for a long time, please turn off the main power switch.

WIFI Blue-tooth Amplifier Audio Wall Amplifier Parameters:
– Power Supply: AC220V(50HZ) compatible 90V-250V
– Load: 4-8Ω
– RMS Output Power: 8x25W
– Audio S/N Ratio: ≥98dB

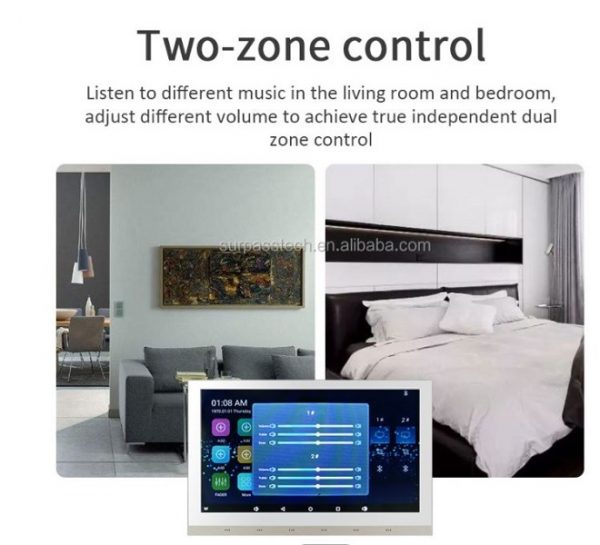

– Audio Zone: 2 zone for audio
– Zone Volume Control: 2 zones
– Wi-Fi: 2.4G up to 20 meters
– Infrared Remote Control Distance: up to 10 meters
– Blue-tooth Distance: Up to 10 meters
– Blue-tooth Version: 5.0
– RAM: 1GB/2GB
– ROM: 8GB/16GB

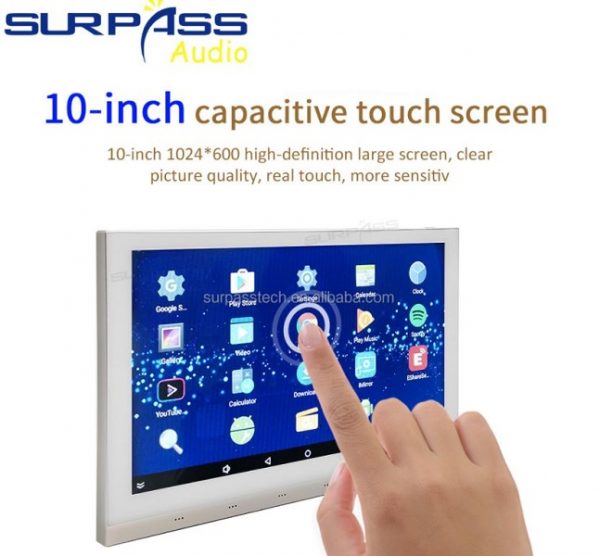

– Display: 10 inch IPS Display
– Resolution: 1024*600
– Audio Input: 1 group
– Audio Output: 1 group
– Wire Box Size: 181*114*70mm

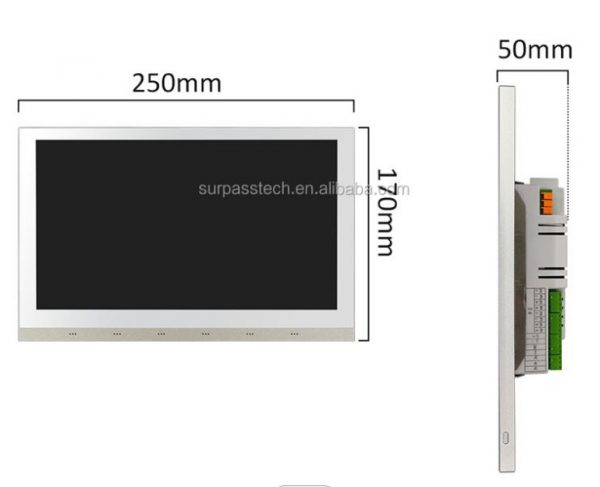

– Dimension: 250*170*48.8mm
