Video Door Bell Intercom


Out of stock

SKU: MV01 Categories: ,


  • Model Number: 86714S-EM+84207EPC

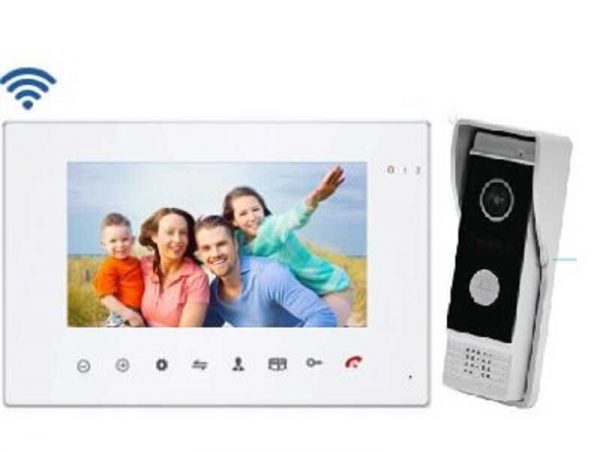

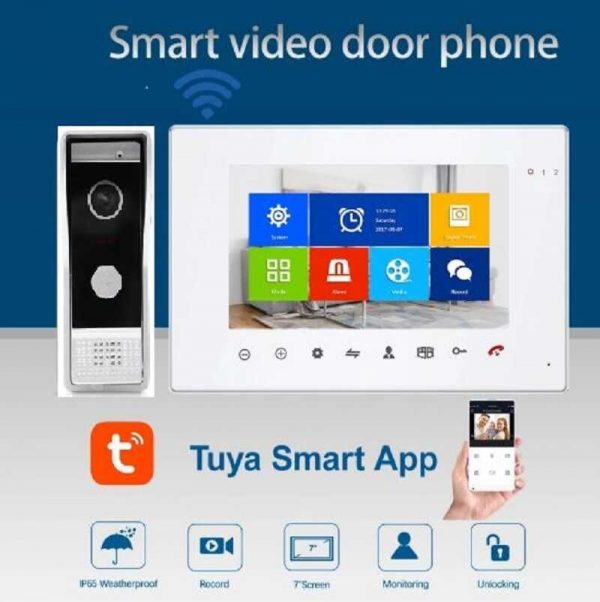

  • Product Name: AHD Wi-Fi Video Intercom
  • Screen: 7” TFT LCD
  • Resolution: 1024(H)*3(RGB)*600(V)
  • Operation: Touch Button
  • Material: Plastic Monitor+ Metal Door station
  • Camera: 1/3”CMOS, 960P, 1.9MM Lens
  • Connection up to: 2 Door station+6 Monitor+2 CCTV camera
  • Power supply: 12V/1A
  • Communication: 2 Way communication
  • Color: Sliver/Black/ White
  • Built-in Memory can save 80picture, support max.32G SD Card

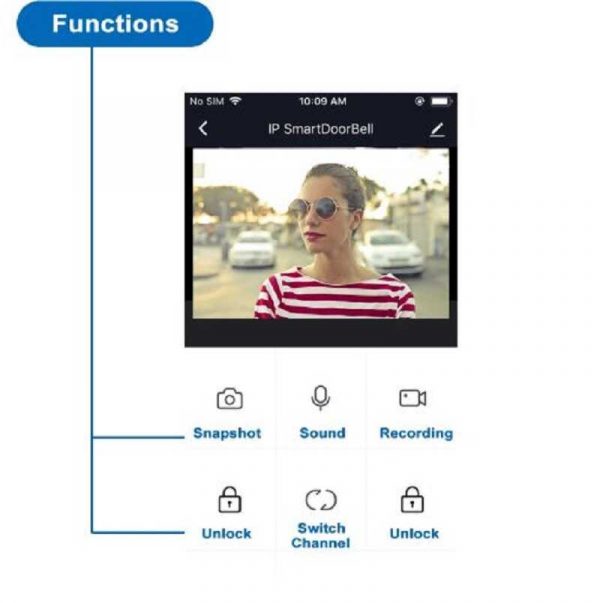

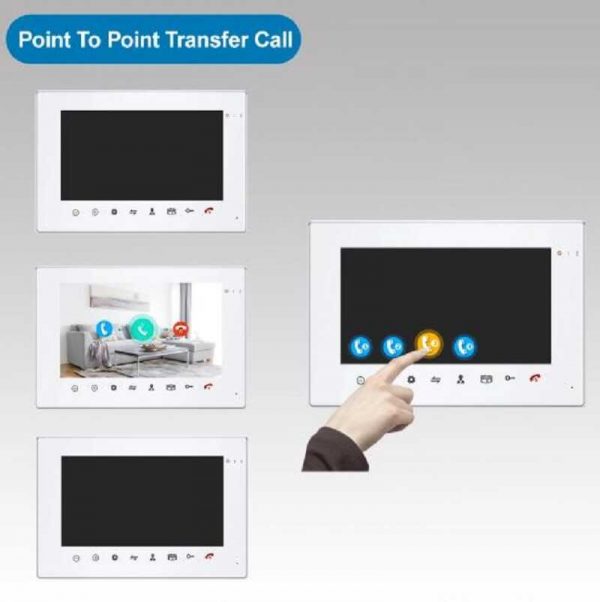

  • Sensor’s Key-unlock, monitoring, internal-communication among indoor monitors, call transfer
  • Pin-Pinhole camera
  • Waterproof IP65 aluminium alloy panel
  • IR LED offset lighting can obtain better evening viewing


Product Parameters

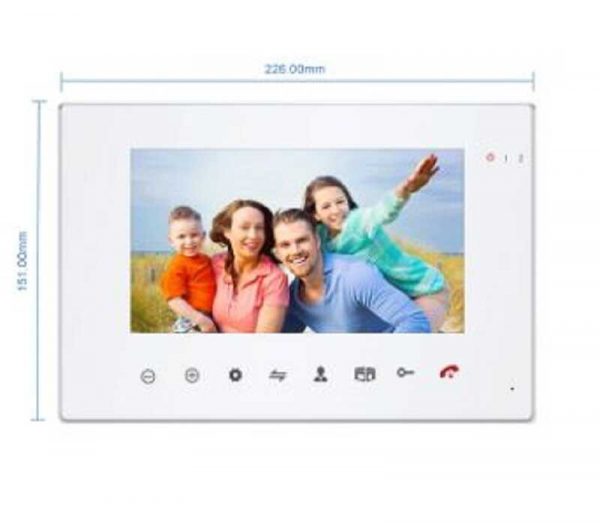

Indoor Monitor Model Number 86714S-EM
Indoor Monitor Screen 7″ TFT LCD Screen
Resolution 1024(H)*3(RGB)*600(V)
Memory Support Max. 32GB TF Card
Intercom Mode Hands-free Duplex Communication
Conversation Duration 120s
Connection Up To 2 Door station + 6 Monitors + 2 CCTV Cameras
Operation Touch Button
Material Acrylic + Plastic
Operation Temp -10℃+60℃
Installation Surface Mount

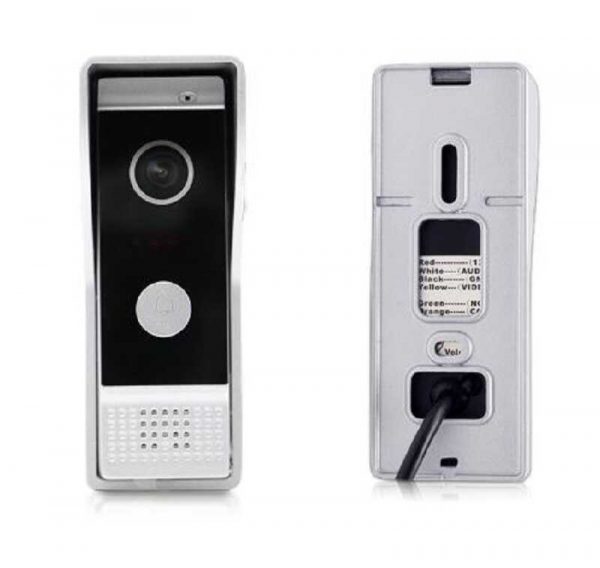

Call Panel Model Number 84203-CP42
Camera Lens 1/4”CMOS, 960P, 2.8MM Lens
View Angle 110°
Night LED IR LEDS (120°)
Power Consumption 200mA Max.
Power Supply Supplied From Indoor Monitor
Material Aluminum Alloy Panel
Waterproof IP65
Operation Temp -40℃+50℃
Installation Surface Mount
Weight 1 kg
